The Assure SD panel is doubly versatile: it can be installed with either a smooth top-rail or, simply by turning it upside down, with the verticals extending above the rail, making specifying for both safety and security easy.
Whatever the orientation, and with 80mm spacings between verticals, Assure SD is ideal for school and childcare environments with multiple residential applications (like keeping the pooch in).
Built from robust aluminium to withstand harsh New Zealand conditions, delivering years of maintenance-free security.
FEATURES
Satin Black powdercoat finish.
*custom colours available upon request
Zero Upkeep
Low maintenance with no painting, staining, or oiling required.
Built for Harsh NZ Conditions
High-grade aluminium resists corrosion, warping, and rot—perfect for coastal, geothermal, and high-wind zones
All Terrain
Raking Panels up to 30 degrees
Multiple Height Options:
1200mm, 1500mm, 1750mm
Complete Systems
Width and height adjustable pedestrian and driveway gates as stock
Custom-sized pedestrian and driveway gates available.
IDEAL FOR
Residential including residential Pool fencing
Balustrading
Childcare
Commercial
Civil
Parks,playgrounds,and streetscapes

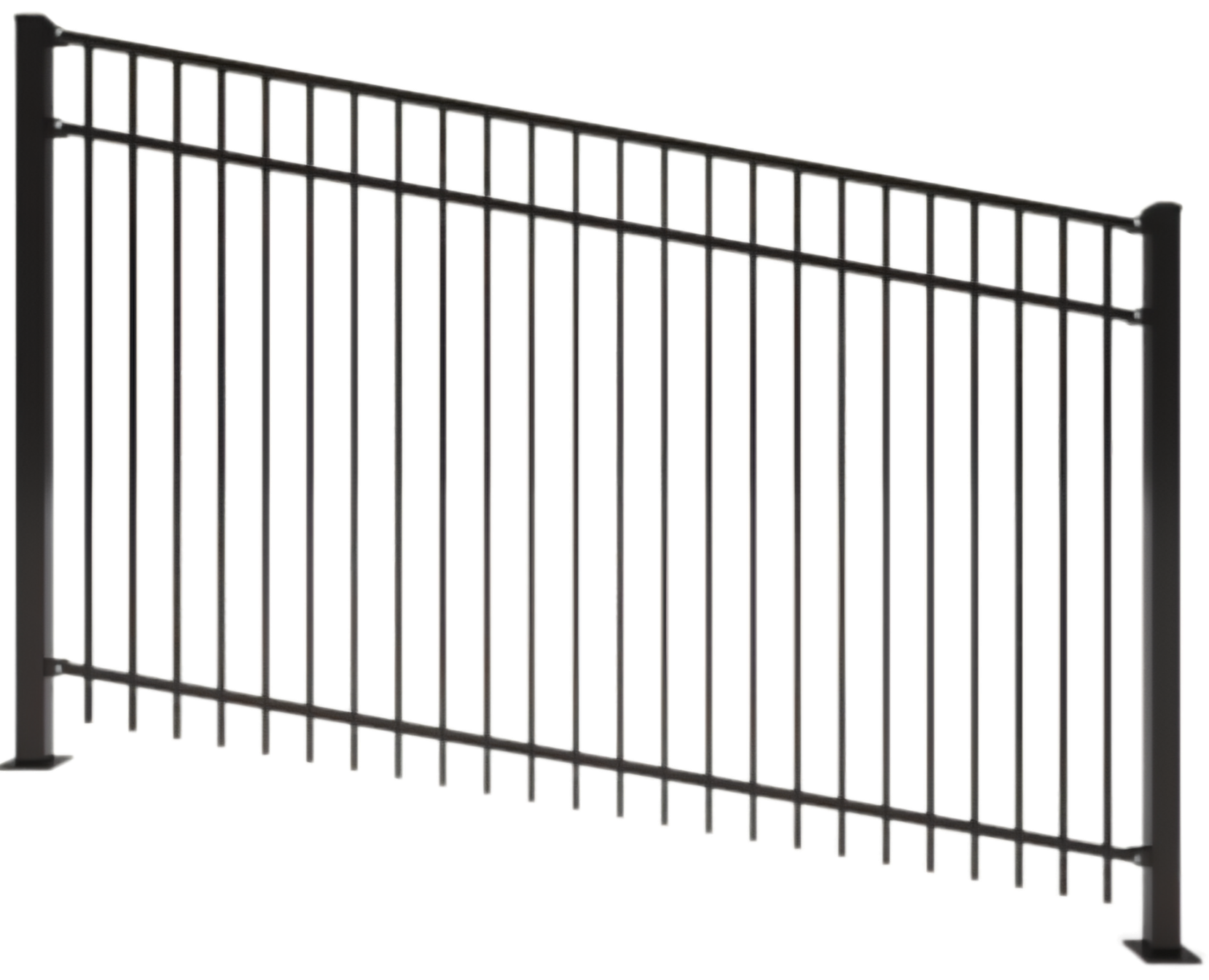

Raking Panels
Up to 30 degress
Panels
2400mm W

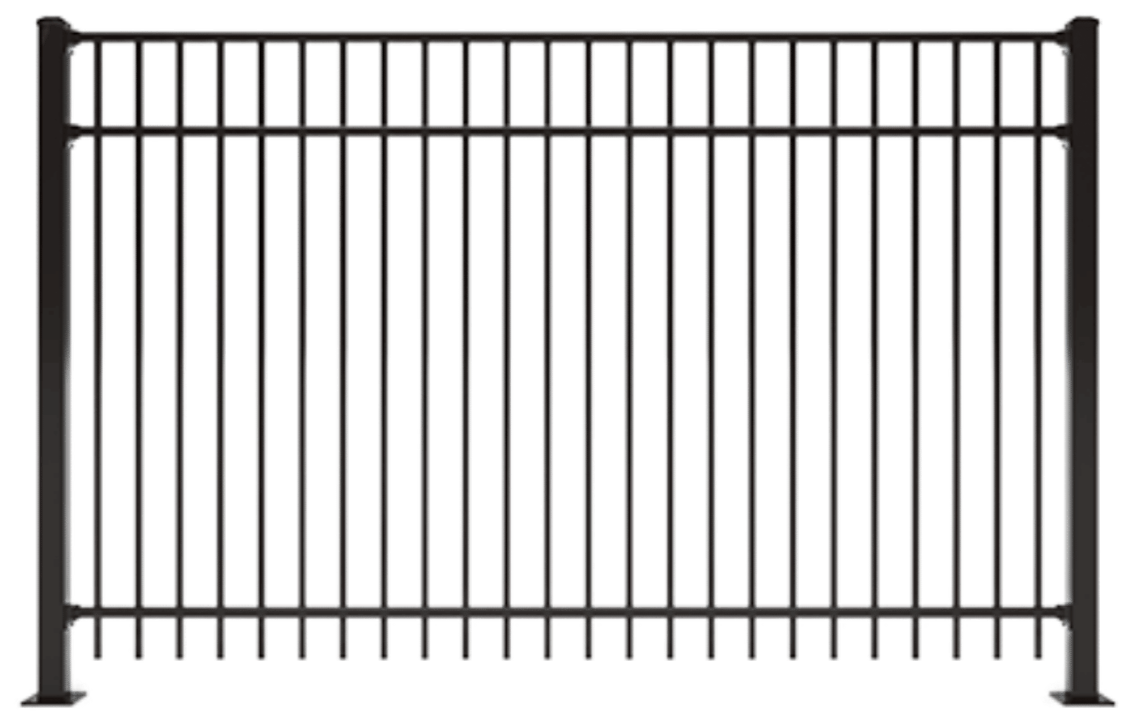

1200mm & 1500mm H - 3 Rails
1750mm H - 4 Rails
65 Std Post
Inground
Side Fix
65 Flange Post
Top Fix

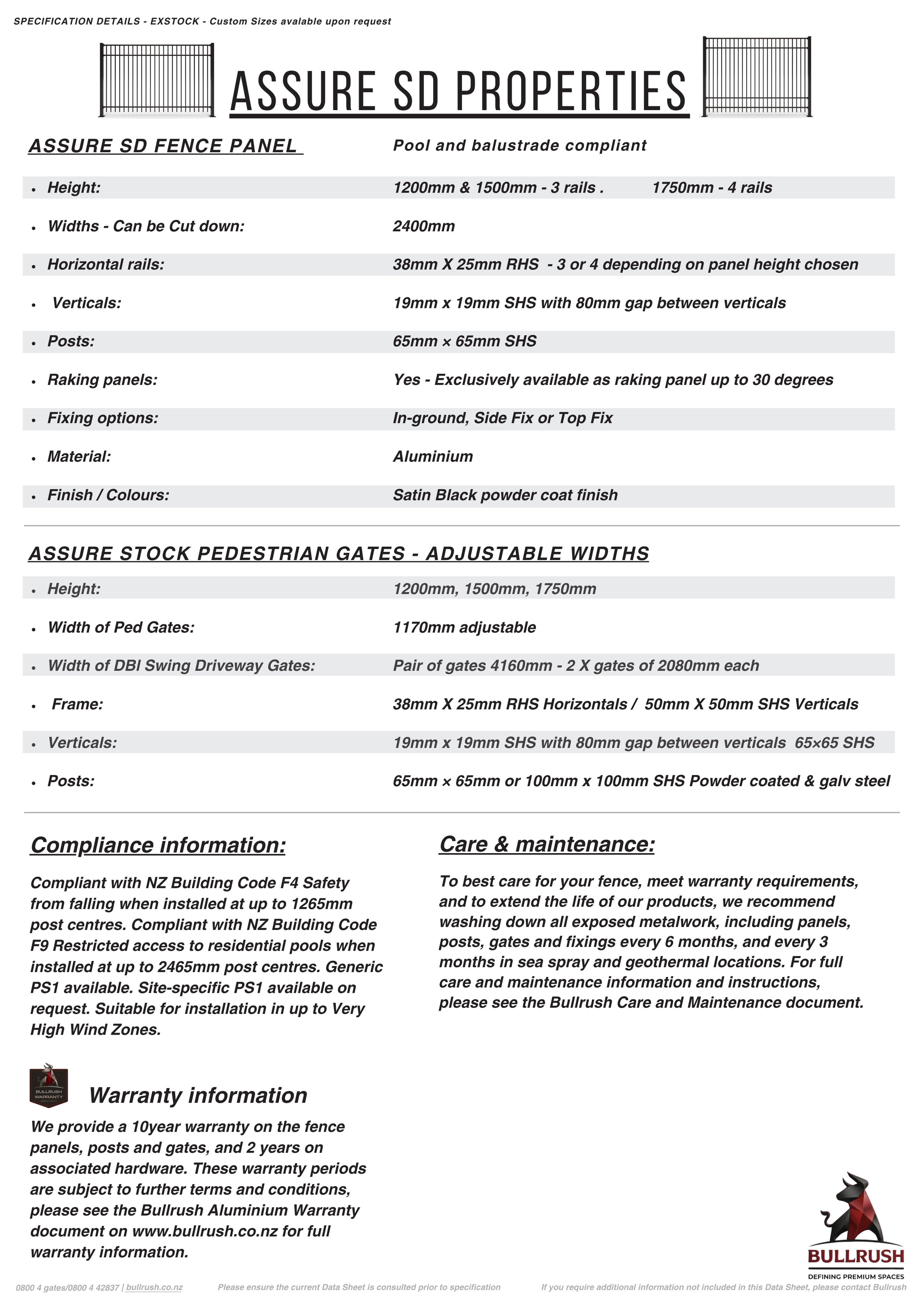

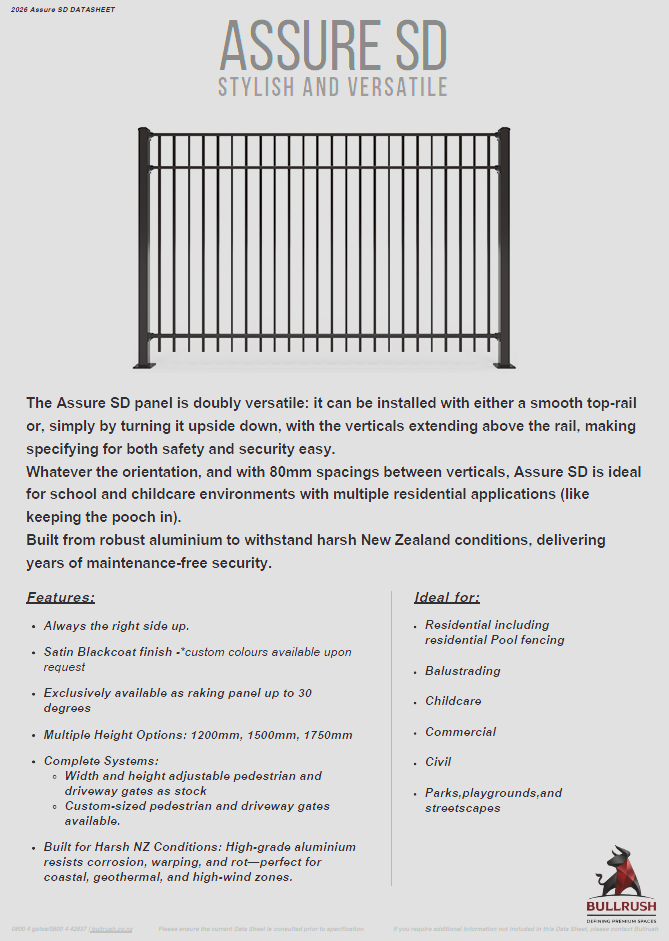

Assure SD Data Sheet
Gate Posts
Under 1200mm - 65 X 65 Steel
Over 1200mm - 100 X 100 Steel
Pedestrian Gates
1175mm W - Adjustable
1200mm - 1500mm - 1750mm H
Flange Post - Top Fix
Std Post - Inground & Side Fix
Double Swing Driveway Gates
1175mm W - Adjustable
1200mm & 1500mm H - 3 Rails / 1750mm H - 4 Rails
Standard Gate Hardware
MagnaLatch® Top Pull Lock
MagnaLatch® SIDE PULL
MagnaLatch® TruClose® HEAVY DUTY Hinge
LokkLatch® DELUXE Hinge
Whether you’re looking for a statement piece to complement the design of your property or simply seeking a practical solution, Bullrush will help bring your vision to life!
